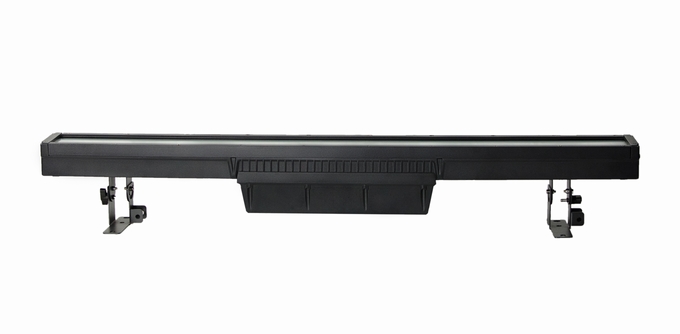

Waterproof RGBW 4in1 DMX LED Strobe Stage Light IP65 LED Pixel Line Strobe Bar Light Outdoor
[Specification]
Light Sources:
672 x 0.5W RGB LED
112 x 3W CW LED
Beam Angles:
RGB Beam Angle: 101°
CW Beam Angle: 108°
Field Angles:
RGB Field Angle: 149°
CW Field Angle: 152°
Optical System
Advanced optical design for seamless effects
SMART Glass technology for DMX controllable frost effects
Control
4-Button touch panel
Display: OLED display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 11
Control channels: 7/15/21/39/112/17/33/65/68/117/70
Firmware Upgrade: Upgrade via DMX link
Electrical and Connectors
Input Voltage Range: 100-240VAC, 50/60Hz
Power consumption: 420W
Power In/Out: Waterproof connections (TRUE1 type)
Data In/Out: Waterproof 3-pin or 5-pin XLR connectors, RJ45
Protection rating: IP66
Installation
Horizontal or vertical mounting
Universal operating position
2, omega brackets (optional with 2 foldable fixed clamps)
Safety cable mounting point
Included Items
User Manual
Power Cable (with TRUE1 type connector)
2, Omega Brackets (optional with 2 x foldable fixed clamps)
[Cautions]
- Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
- Unplug mains lead before opening the housing!
- To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
- This fixture must be earthed!
- Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!
[Product Description]
Product Tags:
|
|
Waterproof RGBW 4in1 DMX LED Strobe Stage Light 420w IP65 LED Pixel Line Strobe Bar Light Outdoor Images
|
